Activity 3. Simple home alarm system
The purpose of the activity is for the PIC18F4550 to function as a simple alarm system. The microcontroller uses a 16x2 liquid crystal display as output device. Instead of magnetic reed switches, dip switches are used.
(75 minutes)
Activity 3
=> Alarm system function:
- in the protection area there are 5 switches/sensors and they are grouped in 2 zones
- Zone A has 2 switches/sensors
- Zone B has 3 switches/sensors
- each zone can be activated independently of the other using 2 switches
- two LEDs indicate the activation of each zone
- the alarm activates a buzzer
- the buzzer is ON until the alarm zone is deactivated
=> Microcontroller’s inputs:
PIN | Description |
RB0 | Activation of Zone A |
RB1 | Activation of Zone Β |
RB3 | Switch/sensor 1 – Zone A |
RB4 | Switch/sensor 2 – Zone A |
RB5 | Switch/sensor 3 – Zone B |
RB6 | Switch/sensor 4 – Zone B |
RB7 | Switch/sensor 5 – Zone B |
=> All inputs are activated with “0”
=> This alarm system could be used to protect the area in which the user is inside

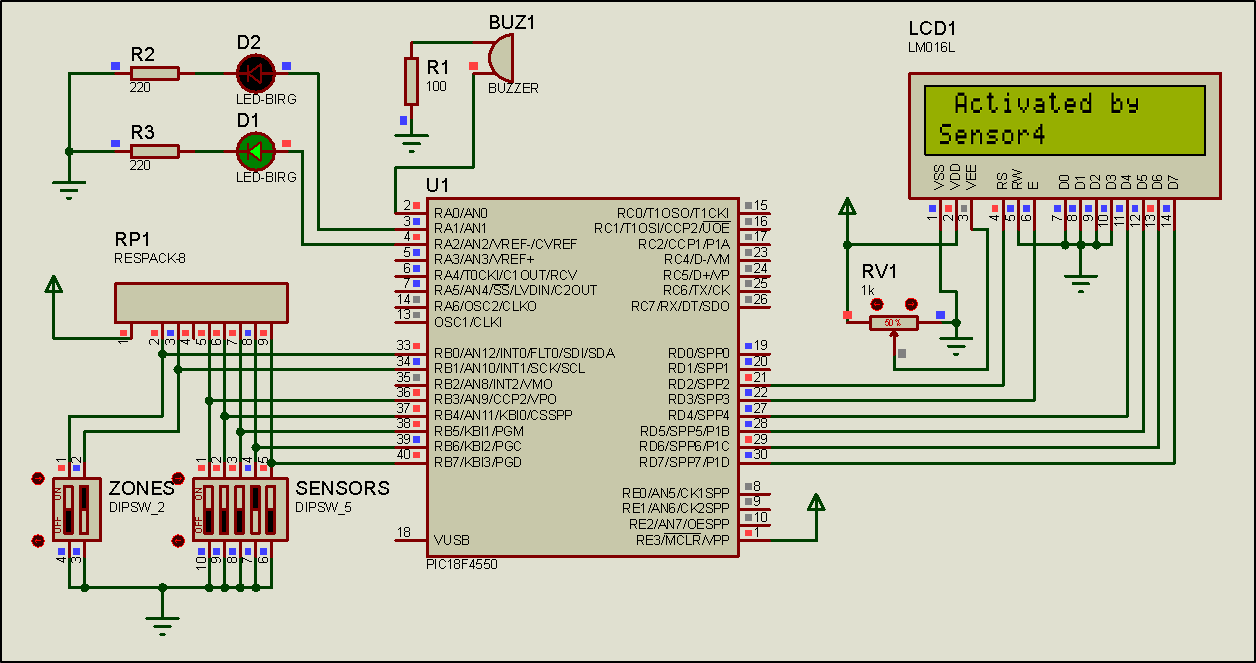

Step 1. The circuit is drawn in the Proteus Design Suite.
Step 2. The program in C language is written.
Write in CCS Compiler the program in C language
#include <main.h> // the file main.h with the
// initial settings is included.
// This file must be placed in the same
// folder with the project.
// Also the 18F4550.h file must exist
// in the same folder with the project
#include <flex_lcd.h> // The h file of the lcd driver
// should be in the same folder where we will save our program.
// The #define LCD_DB4 PIN_B4 etc statements in flex_lcd.c
// should be checked and possibly modified.
// These statements determine the pins of the microcontroller
// that are connected to LCD 16x2.
#byte PORTB =0xF81
// We attribute to the memory position 0xF81 the name PORTB.
// This means that we define a 8 bit variable whose value
// will be stored to the memory position F81h.
// The memory position F81h is the PORTD data register.
#byte PORTD=0xF83 // F83h is the position or PORTD data register
// at the data memory of the microcontroller
// SFR Special Function Register
#byte PORTA=0xF80 // F80h is the position or PORTA data register
// at the data memory of the microcontroller
// SFR Special Function Register
boolean zone1; //flag raised when Zone 1 is activated
boolean zone2; //flag raised when Zone 2 is activated
boolean alarm; //flag raised when the alarm goes off
// ********* main program ************************
void main() {
set_tris_d(0x00); //PORTD is defined as output to drive the LCD
set_tris_b(0xFF); //PORTB is defined as input for sensors and control switches
set_tris_a(0x00); //PORTA is defined as output to set on/off the buzzer and LEDs
output_low(PIN_A0); //buzzer activations
output_low(PIN_A1); //LED1 (zone1) is off
output_low(PIN_A2); //LED2 (zone2) is off
lcd_init(); //Initialization routine
lcd_putc("\f"); //Clear display
printf(lcd_putc," Alarm is off"); //display the message
while(TRUE) {
//check for zoneA activation
if(input(PIN_B0)==0){
zone1=1; //zoneA is activated
}
else{
zone1=0; //zoneA is de-activated
alarm=0; //alarm turned off
}
//check for zoneB activation
if(input(PIN_B1)==0){
zone2=1; //zoneB is activated
}
else{
zone2=0; //zoneB is de-activated
alarm=0; //alarm turned off
}
//print a message on the LCD
if(zone1==0 && zone2==0){
lcd_putc("\f");
printf(lcd_putc," Alarm is off");
delay_ms(150);
}
else{
lcd_putc("\f");
printf(lcd_putc," Alarm is on");
delay_ms(150);
}
if(alarm==0){
if(zone1==1){
output_high(PIN_A1); //LED for zoneA is ON
//check the sensors
if(input(PIN_B3)==0){
alarm=1;
lcd_putc("\f");
printf(lcd_putc," Activated by\nSensor1");
}
else if(input(PIN_B4)==0){
alarm=1;
lcd_putc("\f");
printf(lcd_putc," Activated by\nSensor2");
}
if(alarm==1){
output_high(PIN_A0); //buzzer is on
while(input(PIN_B0)==0){;} //wait to turn off the ZoneA
}
}
else{
output_low(PIN_A1); //LED for zoneA is OFF
output_low(PIN_A0); //buzzer is OFF
}
if(zone2==1){
output_high(PIN_A2);//LED for zoneB is ON
//check the sensors
if(input(PIN_B5)==0){
alarm=1;
lcd_putc("\f");
printf(lcd_putc," Activated by\nSensor3");
}
else if(input(PIN_B6)==0){
alarm=1;
lcd_putc("\f");
printf(lcd_putc," Activated by\nSensor4");
}
else if(input(PIN_B7)==0){
alarm=1;
lcd_putc("\f");
printf(lcd_putc," Activated by\nSensor5");
}
if(alarm==1){
output_high(PIN_A0); //buzzer is on
while(input(PIN_B1)==0){;} //wait to turn off the ZoneB
}
}
else{
output_low(PIN_A2); //LED for zoneB is OFF
output_low(PIN_A0); //buzzer is OFF
}
}
}
Step 3. Use the CCS C Compiler to translate the programm from C language to the microcontroller machine code. Load to the microcontroller the hex file (machine code) that was created from the CCS Compiler.
.Step 4. Run
the simulation and check the correct operation of the circuit.
