Introduction
- Timer0
(45 minutes)
Timer0
Interrupt is to stop execution of the microcontroller's program flow in order to execute a block of code called an interrupt service routine
Timers are some 8-bit or 16-bit registers whose content is incremented by a specific time interval.
After the value 111 ... 111 the timer takes the value 000 ... 000 (overflow). In this transition we can program an interrupt to occur.
Question: Where do the pulses that increment the Timer value come from?
Answer: They can come from an external source and be applied to a specific pin of the microcontroller

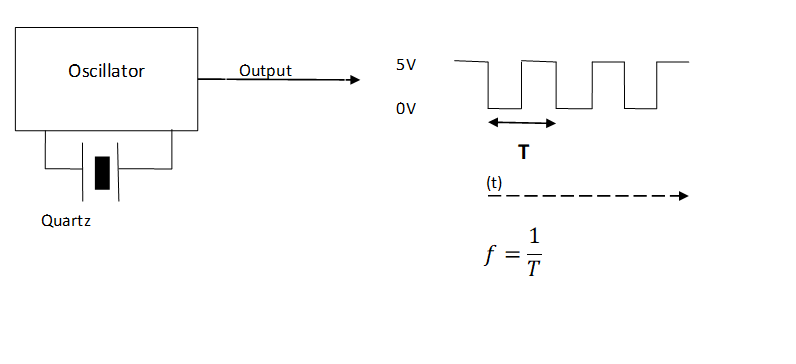

Or come from a circuit inside the microcontroller called an internal oscillator (Oscillator)
In our program with a command we declare the source of the pulses that we want to be used
Timer0 is an 8 bit or 16 bit. If we want it to be used as an 8-bit timer, we should fill in the relevant parameter in the timer0 setup command.
Prescaler is a configurable clock-divider circuit. It can be used to divide the clock frequency input to the timer module. Prescaler’s values: 1, 2, 4, 8, 16, 32, 64, 128, 256
---------------------------------------------------------------------------------------------------------------------
enable_interrupts(INT_TIMER0);
// Enable interrupt from timer0
enable_interrupts(GLOBAL);
// enables (if set) all un-masked interrupts or disables (if cleared) all interrupts.
----------------------------------------------------------------------------------------------------------------------Calculation so that interrupts occur at a specific time interval, for example every 50 ms
This is the initial value that should be set to the Timer so that we have interrupts every 50ms
set_timer0(28035);
